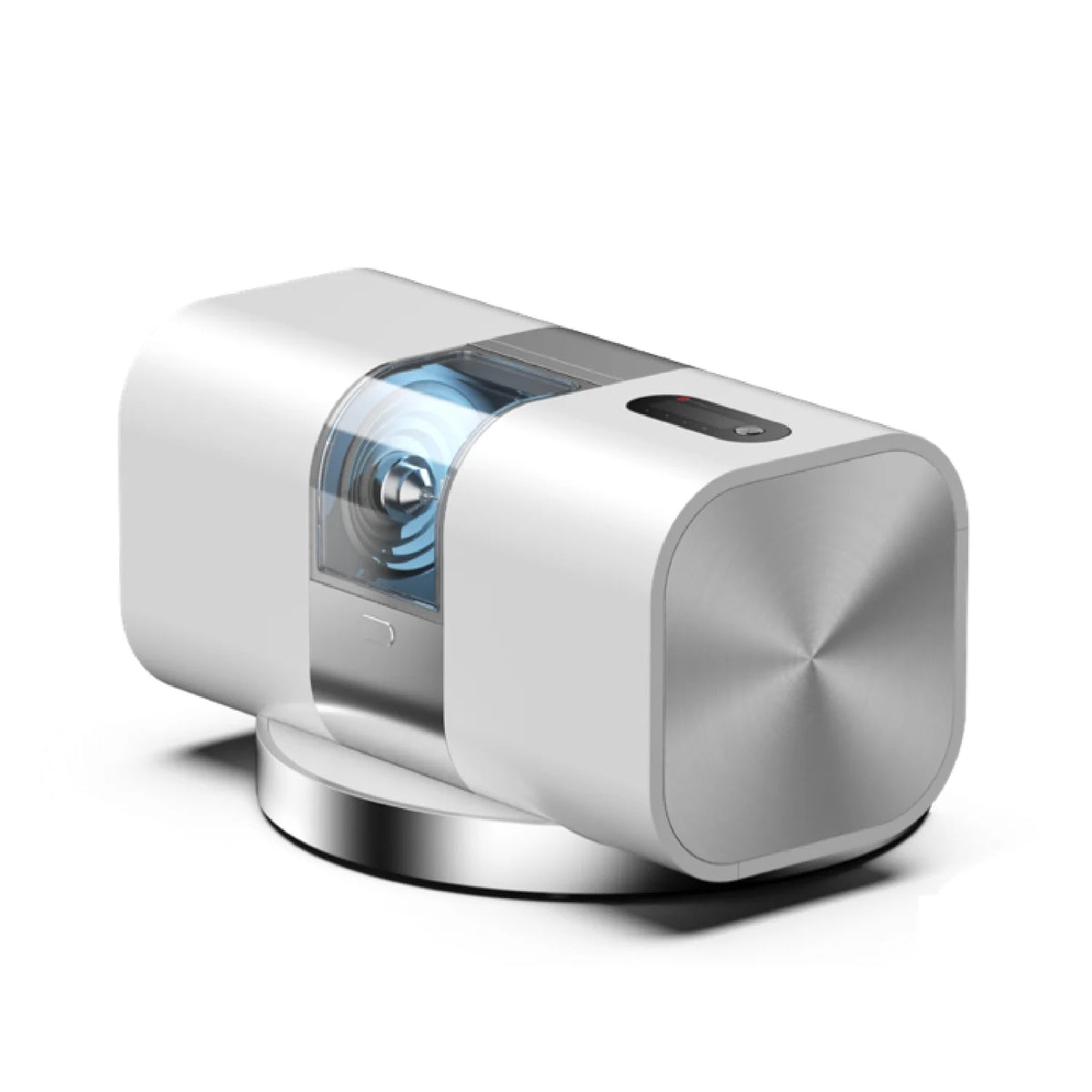

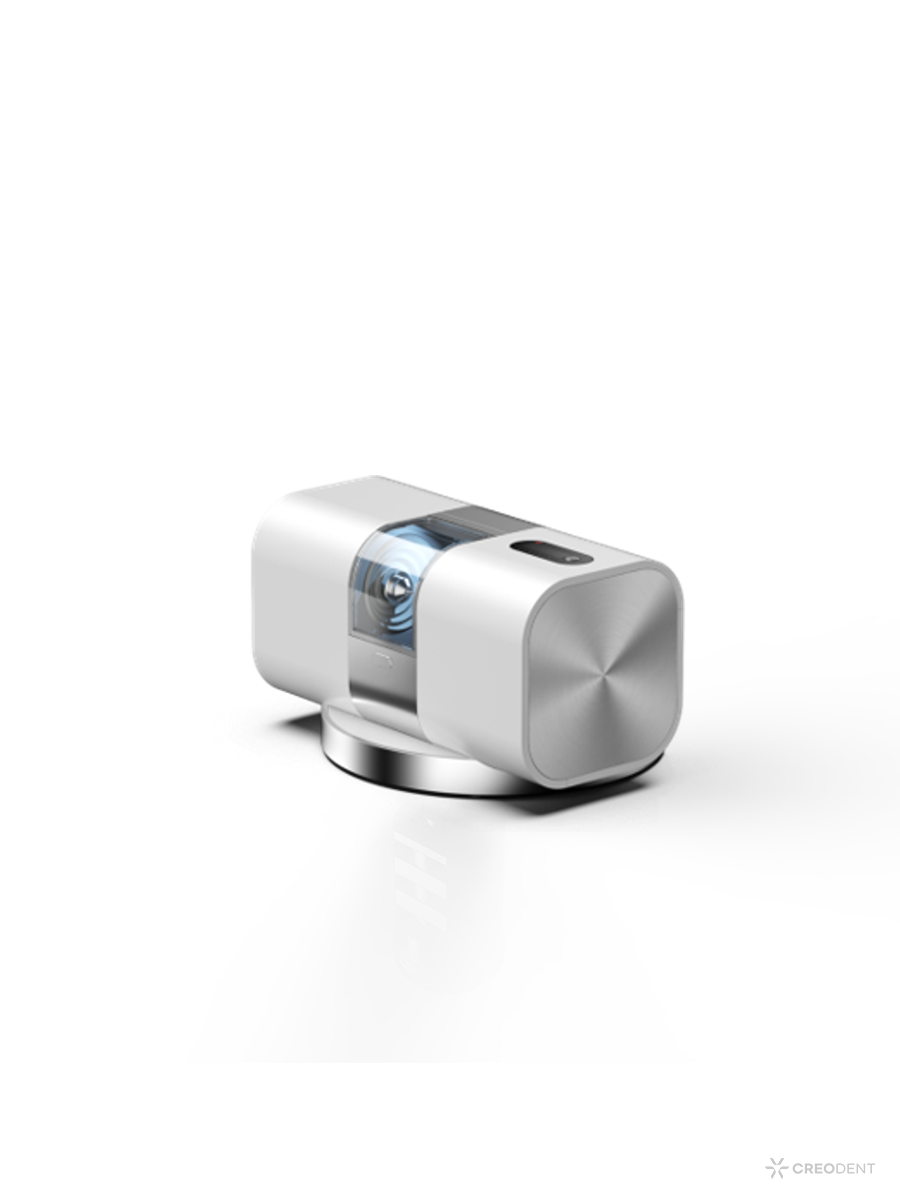

Maxx Chairman

maxx chairman, chairside milling for same day crown restoration

Faster Milling Time. Unprecedented Accuracy.

Chairside milling for same day crowns with Maxx precision.

Specially Designed for Dental Clinics

Every feature and specification is designed for the environments of dental clinics. Small and compact, but fast and highly

accurate milling.

§ 5-axis milling machine for wet milling of a variety of materials

§ No compressed air needed

§ Free voltage (AC 110 ~ AC 200)

§ Noise shielding for silent office

Maximal Accuracy & Short Milling Time

The AC Servo motor enables stable and precise control, and the two spindles and automatic tool changer make the flawless

same-day fabrication. It delivers a smile to the patients in a short time.

Milling Materials:

-Pin type block

-Block dimension: 15x15x38mm

-Glass ceramics, hybrid resin, zirconia, PMMA

Simple To Use

Our user-friendly software, MAXX continues milling functions to save time. You can have remote services and training and

operate the machine through MAXX LINK. MAXX has many other functions to help the milling process more convenient and safe.

Specifications

§ Size and Weight: 670W x 450D x 410H, Approx. 65 kg

§ Controller and Motor: Embedded Controller (4.0” touch screen), AC Servo Motor

§ Spindle: 2 spindles, High Frequency, Max power: 0.5kW, Max. rpm: 100,000

§ Blank material and size: Pin type block (15mmx15mmx38mm), PMMA, glass ceramics and hybrid resin

§ Designed by built-in the water tank

§ Cooling: Wet

§ Utility: AC 100-220V / 50-60Hz / 6A, free voltage, NO NEED of compressed air
