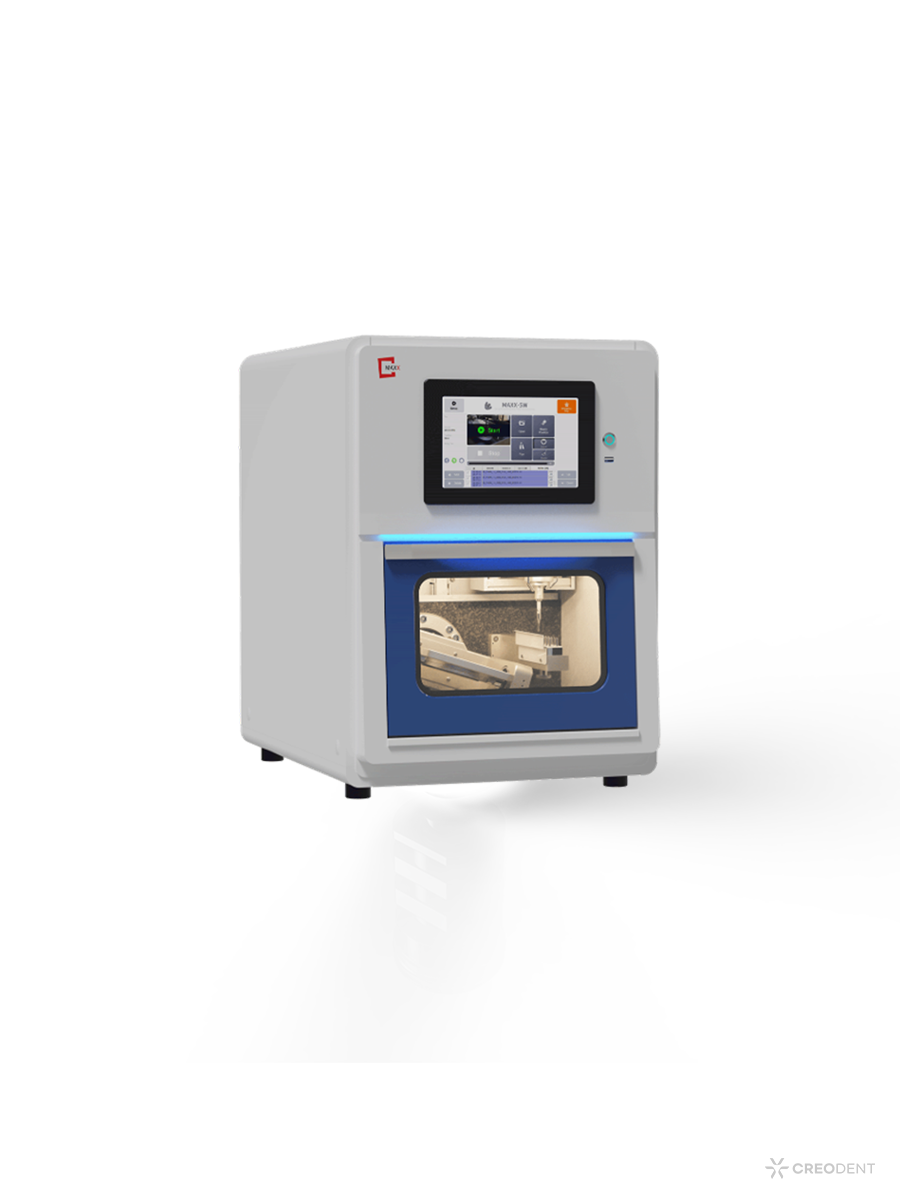

Maxx 5W

Maxx 5w milling solution, ultimate all-in-one wet milling machine

The Maxx 5W is an all-in-one 5-axis wet milling machine capable of handling everything from glass and metal to

zirconia.  Designed as a complete solution for any dental lab or clinic, it delivers exceptional versatility and

performance.  With a robust 1.37 kW spindle reaching up to 80,000 RPM, the Maxx 5W is your one-stop shop for

high-quality, efficient milling.

Unlock Limitless Milling Potential with the Maxx 5W

Looking to do more with less? The Maxx 5W is the ultimate all-in-one milling solution perfect for labs and offices

seeking versatility, power, and efficiency in one compact package.  Why settle for multiple machines when the

Maxx 5W can handle it all? From zirconia, PMMA to metal and glass, this machine offers unparalleled flexibility.

Equipped with a 1.37 kW spindle, it delivers exceptional performance without the need for additional power

 sources—just plug it into a standard wall outlet.  Designed with space efficiency in mind, the Maxx 5W combines

all the capabilities of the larger 5M into a more compact design, freeing up valuable space while maintaining the

same outstanding output.  Whether you’re milling crowns, bridges, or any other dental restorations, the Maxx 5W

gives you the reliability and performance you need to tackle any job. Invest in your future the Maxx 5W is a game-

changer for dental professionals looking to expand their capabilities without the extra cost or footprint.

Tech. Specifications

- Weight 130KG (286lbs)

- 1.37Kw 80K RPM Sycotec (German)

- 5 Axis Wet/Dry Mill

- A=±33 Deg B=±180 Deg

- AC 110-220V, 10A

- AC Servo Motors

- Size 50W x 72D x 69H (CM)

- 16 Tool ATC 6mm Spindle

- O- Type Holder, C-Type Holder, 2x5 Pin Type Holder, 2x5 Abutment holder

“Expand What Your Lab Can Do.”
The Maxx 5W unlocks full wet-and-dry milling versatility in one powerful, efficient system giving you the flexibility

to take on more cases with confidence. As your lab grows, simply add another 5W, keeping training, service, and

support streamlined and simple.
